BRAKE MASTER CYLINDER REPAIR SEALS KIT (Ford Escort Mk2 MKII Parts) (1100, 1300 & 1600) (**From 1977- 80**)

Here's a new Brake Master Cylinder Repair Seals Kit (19.0mm) (0.75") for the following models from Ford -

FORD

ECORT MK2 SALOON

Ford Escort Mk2 1.1, 1.3, 1.6  (** From Mar 77- 80 **)

1. Discs with No Servo
2. Drums with No Servo
3. Discs with Servo

(ie Not for Drums + Servo model - See my other listing)

Only these combinations during these dates. Earlier master cylinders are 20.6mm.

ESCORT MK2 ‘35’ VAN

Ford Escort Mk2 35 Van 1.1 & 1.3 (** From Aug 77- Sep 78 Only **)

(With Front Discs, With or Without Servo).

Ford Escort Mk2 35 Van 1.1 & 1.3 (** From Oct 78- 80 Only **)

(With Front Discs and With Servo).

ESCORT MK2 ‘45’ VAN

Ford Escort Mk2 45 Van 1.1 & 1.3 ( **From Aug 77- Sep 78**)

(Without Servo)

Ford Escort Mk2 45 Van 1.1 & 1.3 (** Frmo Oct 78- 80 **)

(With Servo)

(** Girling Master Cylinders Only  - Identified by numbers of format / similar to 746xxxxxx   - Not for ATE Cylinders **)

To help you identify, this kit does all the following Master Cylinders as long as the Casting Number AND Plastic Tag are BOTH correct.

The Tag denotes the Bore. If it's missing then measure it - Should be (19.0mm) (0.75").

74660220 Tag 66019

74660038 Tag 66035

74660182 Tag 66104

74660294 Tag 66137

74660294 Tag 66145

74660220 Tag 66170

74660182 Tag 66173

74660038 Tag 66194

74660220 Tag 66196

74660294 Tag 66204

74660038 Tag 66214

Both these numbers must be exactly right, don't buy this if only one of the numbers is right and then try to fit it to something else - It won't fit.

Don't buy it just by looking at the pictures - Numbers are everything.

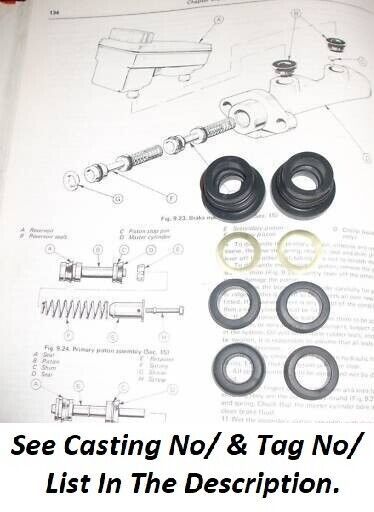

(The diagram in the background is not included).
